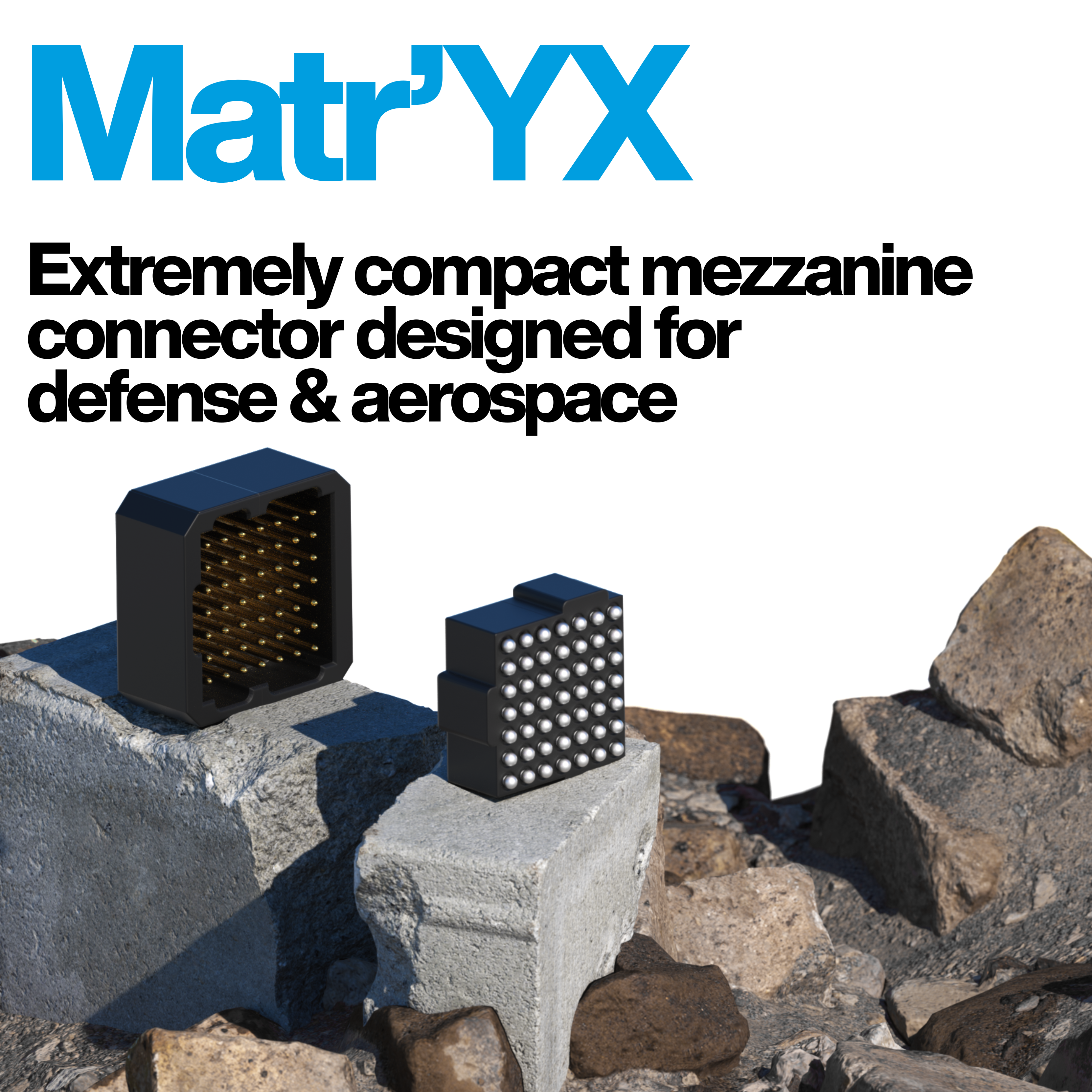

Matr’YX is Nicomatic’s ultra-compact mezzanine connector solution, built to meet the harshest requirements of defense and aerospace electronics. With outstanding signal integrity, rugged design, and space-saving features, Matr’YX ensures reliable performance in environments where failure is not an option.

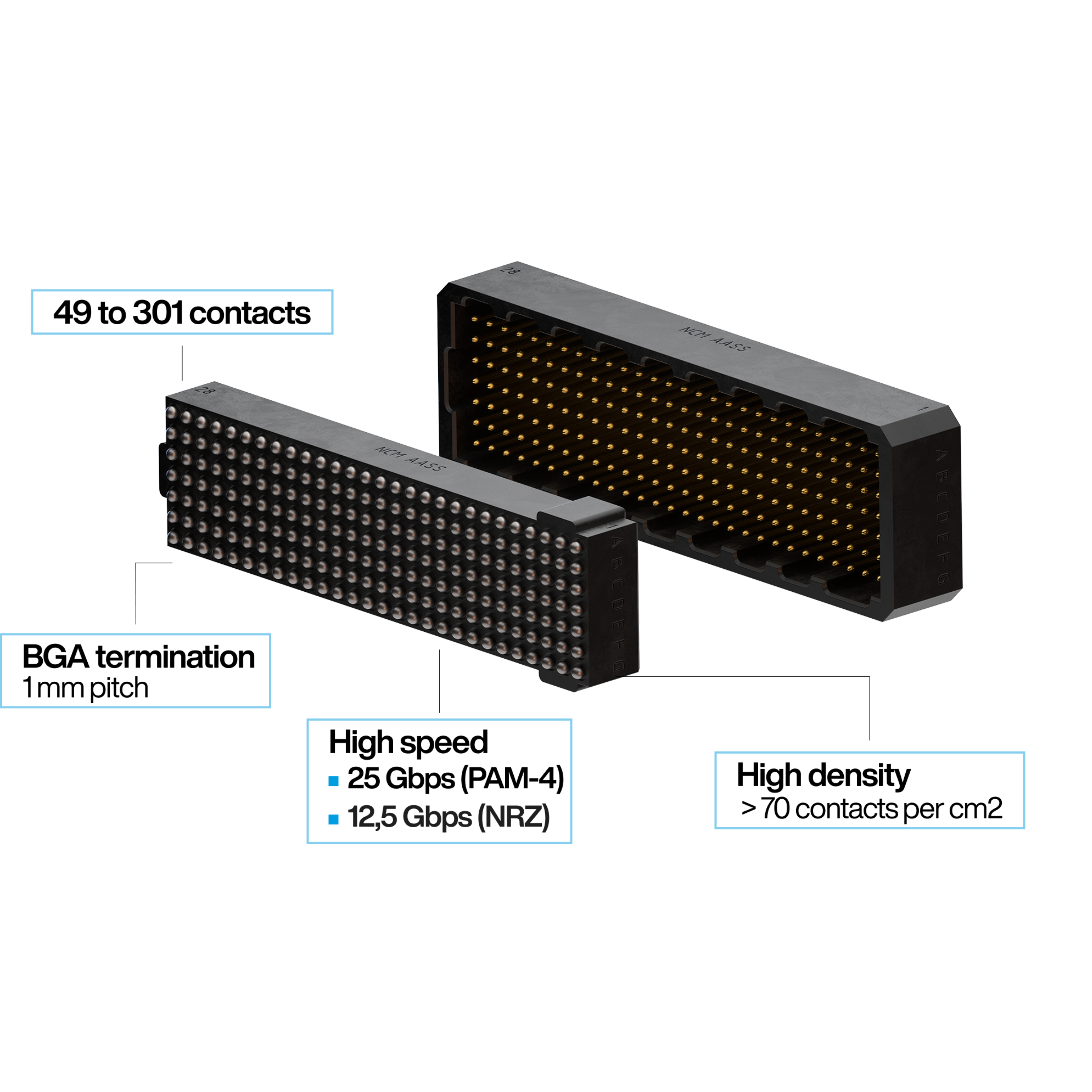

Compact & High-Density Architecture:
- BGA termination (Ball Grid Array) with 1 mm pitch
- High contact density: >70 contacts/cm²
- Space-efficient design allows more signal routing in less board space
Flexible Integration Contact range:
- From 49 to 301 contacts
- Adjustable stack height: from 5.5 mm to 14.5 mm
- Ideal for tailored and space-constrained board-to-board configurations
High-Speed Signal Performance:
- Supports data rates up to: 25 Gbps (PAM-4), 12.5 Gbps (NRZ)
- Ensures fast, clean signal transmission for high-speed systems
