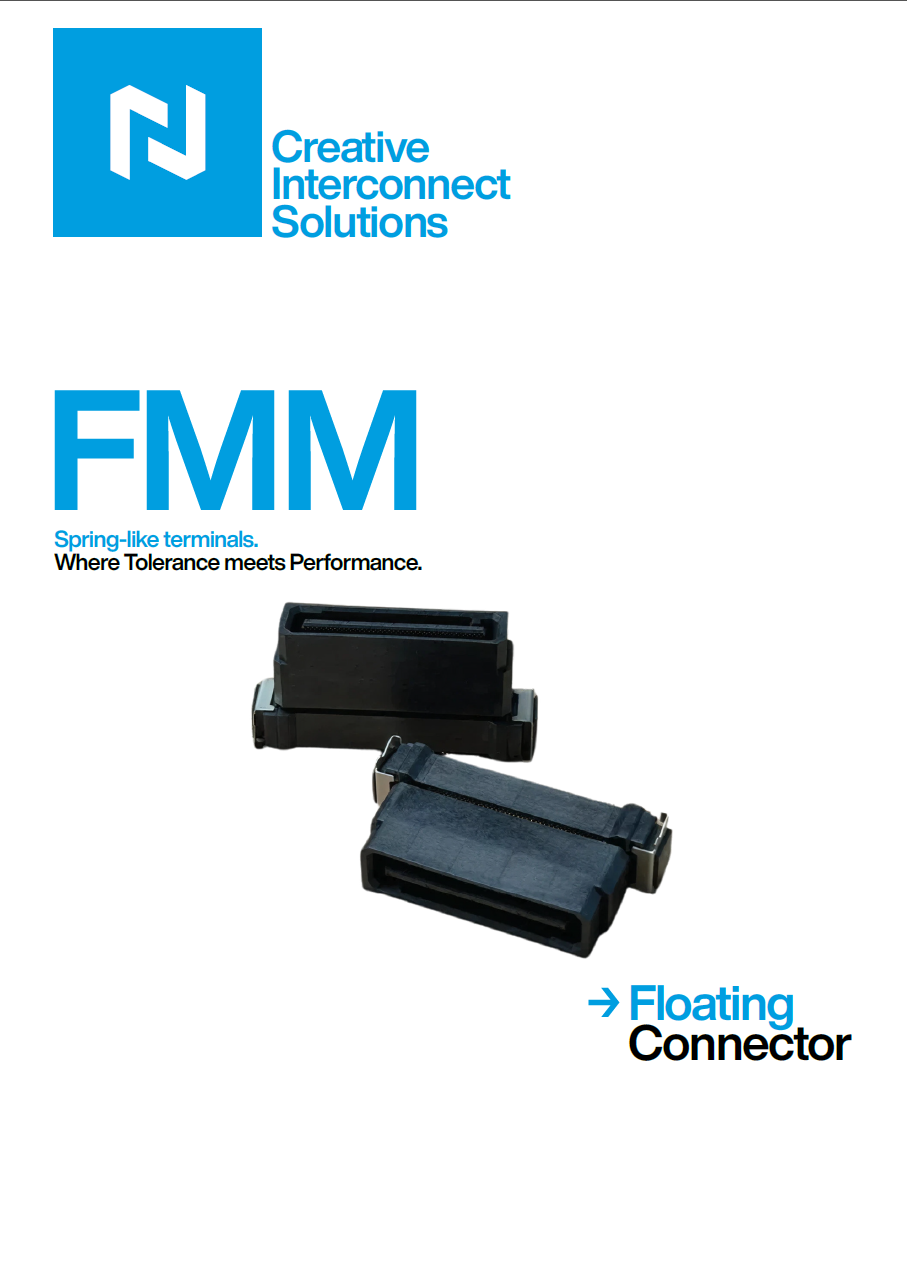

FMM Floating Board-to-Board Connectors are designed to absorb PCB assembly tolerances and compensate for misalignment during mating. Featuring a floating interface with enhanced tolerance compensation, FMM helps reduce mechanical stress, improve assembly yield, and increase long-term system reliability in high-density electronic applications.
Features :
- Floating tolerance compensation for PCB misalignment
- High-speed performance: up to 8 Gbps
- Board-to-Board connection
- Pitch options: 0.50 / 0.635 / 0.80 / 1.27 mm
- Mating height options: 5 mm – 31 mm
- Contacts: Signal and power configurations available
- Contact material: Copper alloy with gold flash plating (custom options available)
- Insulation material: LCP
- SMT Tape & Reel packaging
- Up to 100 mating cycles
